SPL Parts sets the standard in high-performance suspension engineering, delivering precision-crafted components designed for superior handling and adjustability. From competition-ready control arms and toe links to race-proven bushings and camber arms, SPL Parts provides cutting-edge solutions for enthusiasts pushing the limits on the track and the street. Proudly designed and manufactured in the USA, SPL Parts utilizes aerospace-grade materials and advanced CNC machining for maximum strength, durability, and weight savings. With a relentless commitment to quality and innovation, SPL Parts ensures every component enhances vehicle performance, making them the top choice for drivers who demand precision and reliability.

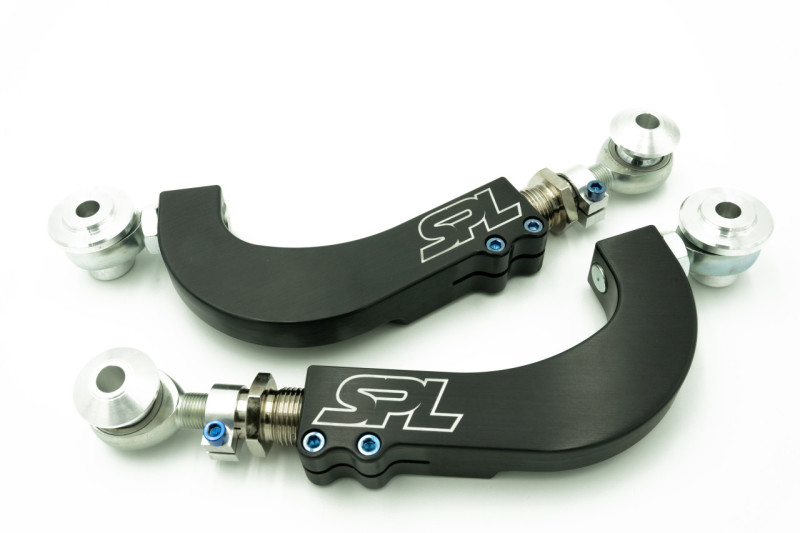

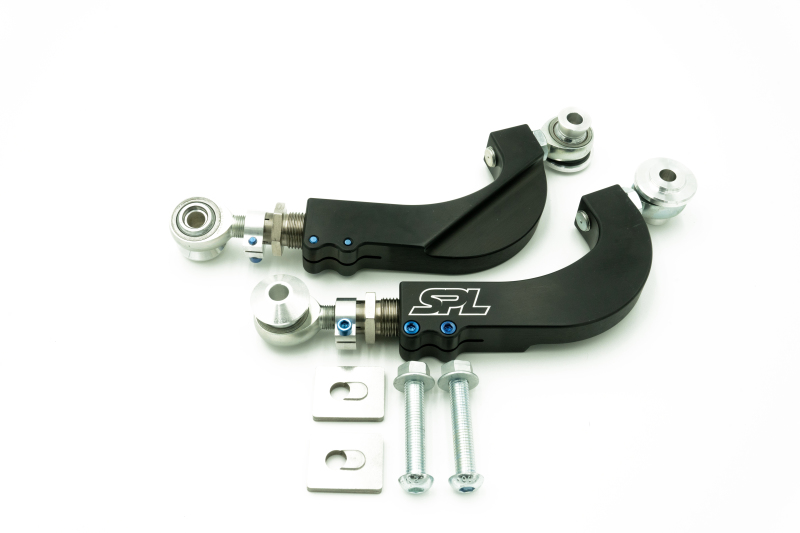

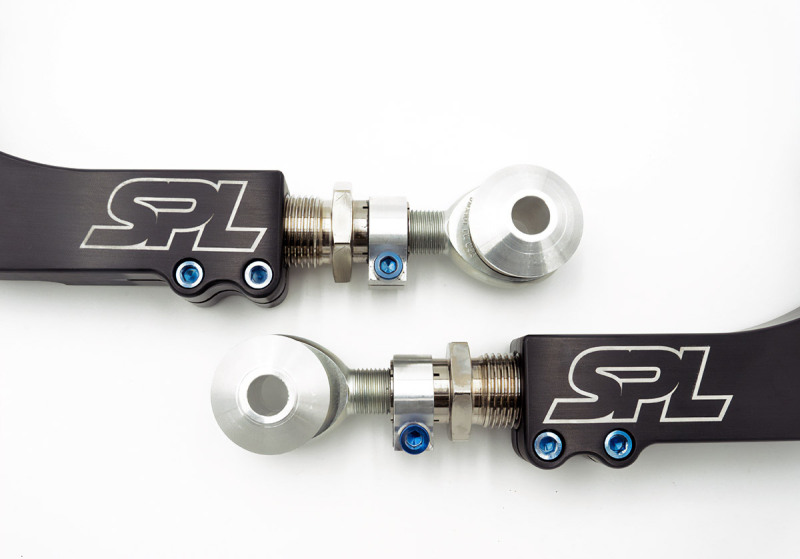

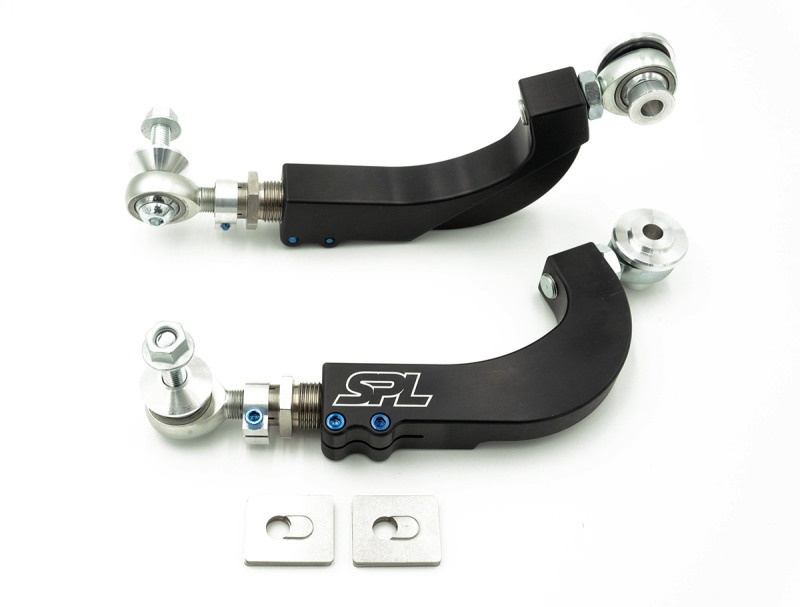

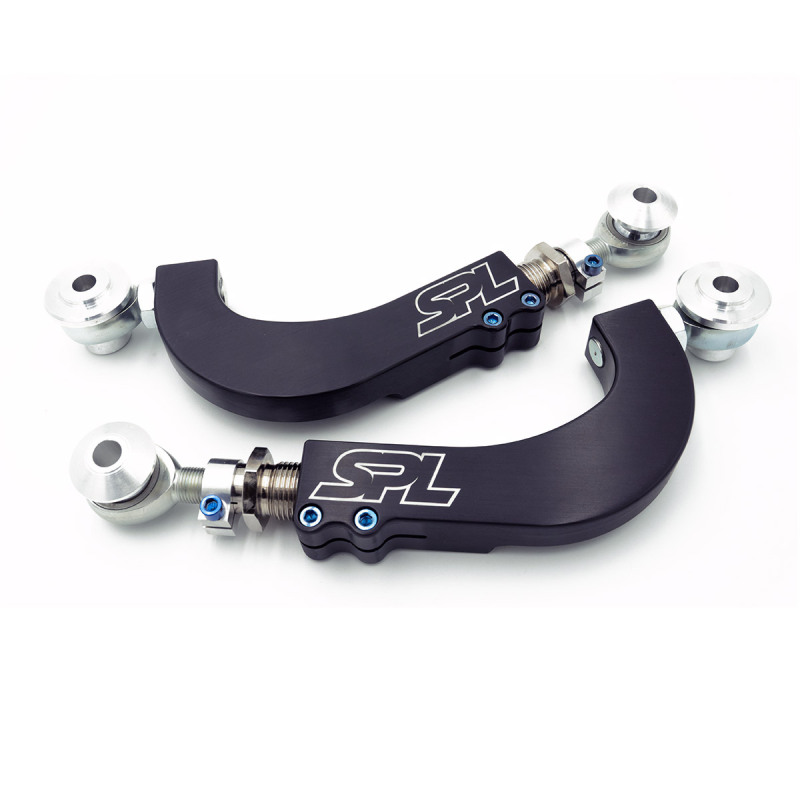

S550 Mustang Rear Upper Arms (RUA) were carefully designed to provide strength, clearance to axle and frame, while allowing for huge range of adjustment. The rear upper arm eliminates the need to adjust from the far inboard side of the arm, which is incredibly hard to reach, and moves all adjustment to the knuckle side, easing alignments. The inner bolt is locked out to a single position, so all adjustments will be done using our double adjustment mechanism, making fine-tuning the rear camber far easier. The assembly uses a 6061-T6 Billet Aluminum body, hardened SPL Double Adjuster specifically designed for the application, as well as hardened rod ends, making this part exceptionally strong to be able to hold any and all loads that are put through it by the stickiest tires you can put on your Mustang. The arm was designed with FEA to ensure it could hold the loads, then destructively tested to confirm the FEA. All the wear components (rod ends) are easily replaceable in this assembly. SPL Parts S550 Mustang Rear Camber Arms Feature: 6061-T6 Billet Aluminum Arm Assembly Blue Anodized Titanium Socket Head Cap Screws Hardened Double Adjuster Teflon Lined Rod Ends Steel Lockout washers Grade 10.9 Hex Cap Bolts with Lock Nuts Sold as a pair. Made in the USA. Applications: 2015+ Ford S550 Mustang Instructions SPL RUA S550 Instructions
This Part Fits:
Fitment Years: 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023.
S550 Mustang Rear Upper Arms (RUA) were carefully designed to provide strength, clearance to axle and frame, while allowing for huge range of adjustment. The rear upper arm eliminates the need to adjust from the far inboard side of the arm, which is incredibly hard to reach, and moves all adjustment to the knuckle side, easing alignments. The inner bolt is locked out to a single position, so all adjustments will be done using our double adjustment mechanism, making fine-tuning the rear camber far easier. The assembly uses a 6061-T6 Billet Aluminum body, hardened SPL Double Adjuster specifically designed for the application, as well as hardened rod ends, making this part exceptionally strong to be able to hold any and all loads that are put through it by the stickiest tires you can put on your Mustang. The arm was designed with FEA to ensure it could hold the loads, then destructively tested to confirm the FEA. All the wear components (rod ends) are easily replaceable in this assembly. SPL Parts S550 Mustang Rear Camber Arms Feature: 6061-T6 Billet Aluminum Arm Assembly Blue Anodized Titanium Socket Head Cap Screws Hardened Double Adjuster Teflon Lined Rod Ends Steel Lockout washers Grade 10.9 Hex Cap Bolts with Lock Nuts Sold as a pair. Made in the USA. Applications: 2015+ Ford S550 Mustang Instructions SPL RUA S550 Instructions
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019-2020 | Ford | Mustang | Bullitt |
| 2015-2023 | Ford | Mustang | EcoBoost |
| 2015-2023 | Ford | Mustang | EcoBoost Premium |
| 2015-2023 | Ford | Mustang | GT |
| 2015 | Ford | Mustang | GT 50 Years Limited Edition |
| 2015-2023 | Ford | Mustang | GT Premium |
| 2021-2023 | Ford | Mustang | Mach 1 |
| 2015-2020 | Ford | Mustang | Shelby GT350 |
| 2015-2020 | Ford | Mustang | Shelby GT350R |
| 2020-2022 | Ford | Mustang | Shelby GT500 |
| 2015-2017 | Ford | Mustang | V6 |
Fitment Years: 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023.
- Category:
- Suspension>Suspension Arms & Components
- Core:
- N
- Core Price:
- 0
- LTL:
- N
- MPN:
- SPL RUA S550
- Proposition 65:
- N
